Pivoting bearings DIN ISO 12240-1 (DIN 648) E series maintenance-free version stainless steel

Pivoting bearings DIN ISO 12240-1 (DIN 648) E series maintenance-free version stainless steel

The product has been added to the shopping cart successfully
Please complete all the filters.
109300000006000
Size 6
Price per piece
12,63 €
Delivery time

Currently out of stock

Accessories for size 6
Shopping cart
Private customer (with VAT)
Corporate customer (without VAT)
Total price
12,63 €

Prices incl. VAT plus shipping costs

10 93 0000 0006/000
Article no.
10 93 0000 0006/000
Size / Identifier
6
Material group
Stainless steel A2 quality
Surface
bright
Lubrication
no lubrication required; the ball slides on the PTFE fabric located in the bearing shell; working range: -150 °C to +250 °C

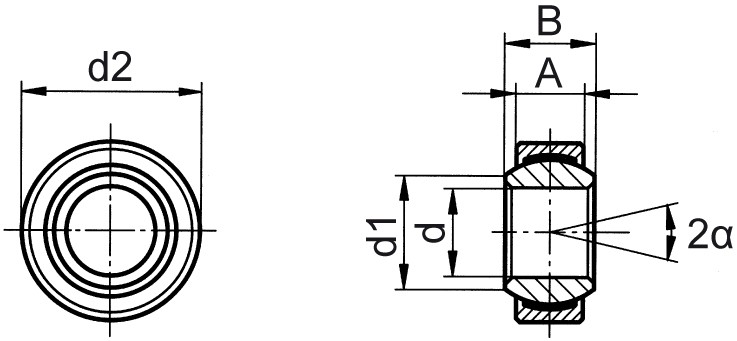

d
6
d Tolerance
0/-0,008
A
4
B
6
d1
8
d2
14
d2 Tolerance
0/-0,008
Static basic load rating C0 (kN)
9
Angle of misalignment α°
13
Bearing radial tolerance in mm min. - max.
0 - 0,032
Mass (g) per piece
4
Material

bearing shell: stainless steel 1.4571(X6CrNiMoTi17-12-2), with glued-in PTFE fabric

from size 80 with glued-in high performance-PTFE-combound

internal ring: stainless steel 1.4125 (X105CrMo17)/1.4112 (X90CrMoV18), hardened, grinded, polished

Recommended fits for housing bores for installing pivoting bearings:
load normal - for steel housing K7, for light-alloy housing M7
load high - for steel housing M7, for light-alloy housing N7
Product information "Pivoting bearings DIN ISO 12240-1 (DIN 648) E series maintenance-free version stainless steel"

Filter - 22 out of 22 products selected

Additional columns

Choose columns
Ordernumber Size / Identifier Material group Surface Lubrication Article no. dd ToleranceABd1d2d2 ToleranceStatic basic load rating C0 (kN)Angle of misalignment α°Bearing radial tolerance in mm min. - max.Mass (g) per piece Shop
Recommended fits for housing bores for installing pivoting bearings:
load normal - for steel housing K7, for light-alloy housing M7
load high - for steel housing M7, for light-alloy housing N7
