Pivoting bearings DIN ISO 12240-1 (DIN 648) E series steel/steel version with sealing

Pivoting bearings DIN ISO 12240-1 (DIN 648) E series steel/steel version with sealing

The product has been added to the shopping cart successfully
Please complete all the filters.
109000000015001
Size 15
Price per piece
0,00 €
Delivery time

Currently out of stock

Accessories for size 15
Shopping cart
Private customer (with VAT)
Corporate customer (without VAT)
Total price
0,00 €

Prices incl. VAT plus shipping costs

10 90 0000 0015/001
Article no.
10 90 0000 0015/001
Size / Identifier
15
Material group
Steel
Surface
bright
Lubrication
lubrication with a pressure resistant grease on lithium soap basis with molybdenite disulphide additaments; working range: -30 °C to +130 °C; initial lubrication must be performed during initial operation

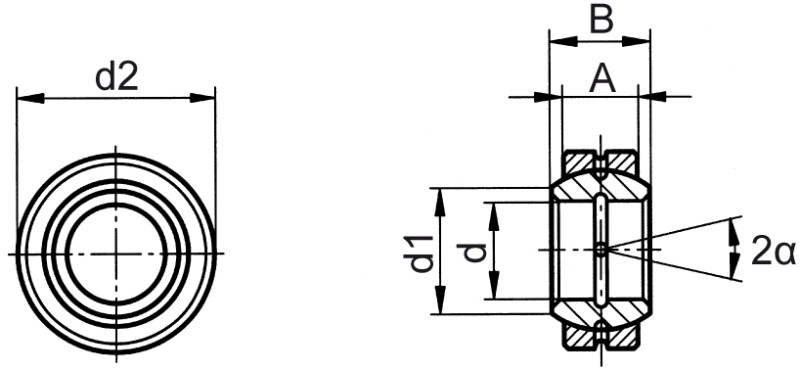

d
15
d Tolerance
0/-0,008
A
9
B
12
d1
18,4
d2
26
d2 Tolerance
0/-0,009
Static basic load rating C0 (kN)
85
Angle of misalignment α°
8
Bearing radial tolerance in mm min. - max.
0,040 - 0,082
Mass (g) per piece
26
Material

bearing shell: ball bearing steel 1.3505 (100Cr6), hardened, grinded, phosphatised, molybdenite disulphide treatment

from size 15 deliverable with double face sealing (mbo standard 90, order number: .. 90 0000 ....)

from size 220 only deliverable with double face sealing (mbo standard 90)

internal ring: ball bearing steel 1.3505 (100Cr6), hardened, grinded, phosphatised, molybdenite disulphide treatment

Recommended fits for housing bores for installing pivoting bearings:
load normal - for steel housing K7, for light-alloy housing M7
load high - for steel housing M7, for light-alloy housing N7
Product information "Pivoting bearings DIN ISO 12240-1 (DIN 648) E series steel/steel version with sealing"

Filter - 28 out of 28 products selected

Additional columns

Choose columns
Ordernumber Size / Identifier Material group Surface Lubrication Article no. dd ToleranceABd1d2d2 ToleranceStatic basic load rating C0 (kN)Angle of misalignment α°Bearing radial tolerance in mm min. - max.Mass (g) per piece Shop
Recommended fits for housing bores for installing pivoting bearings:
load normal - for steel housing K7, for light-alloy housing M7
load high - for steel housing M7, for light-alloy housing N7
