Rod ends DIN ISO 12240-4 (DIN 648) K series maintenance-free version with sealing male threadsuitable for dynamic loads
Prioritize this bolt in our production including express shipping. We are currently testing this service exclusively for the delivery country Germany. Order by 10 a.m. for delivery by 12 p.m. the following day. We are currently testing this service exclusively for the delivery country Germany.
plus shipping costs
To cancel your filter settings again, click on the "Clear" button below the table.
You can display product details, including the eShop function and 3D model , by clicking in the row corresponding to the required article.

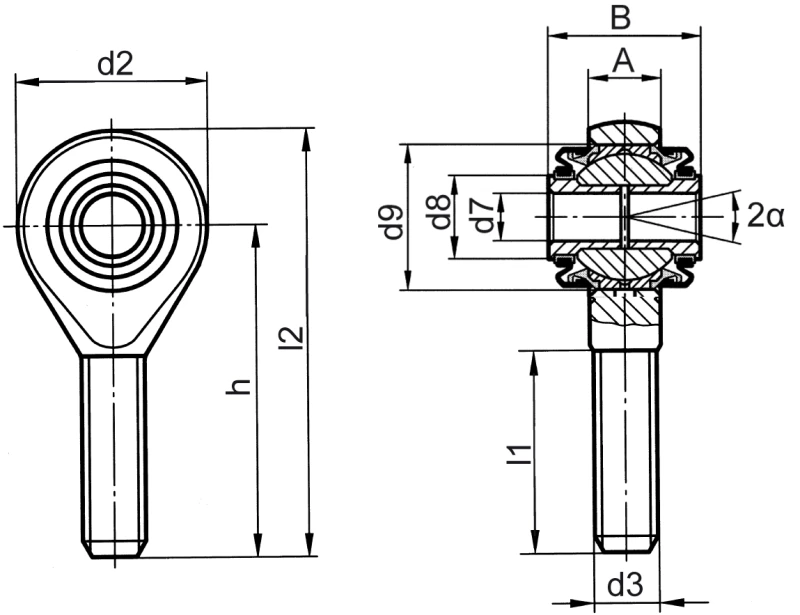

Rod end K series maintenance-free version with sealing male thread
Static basic load rating C0 (kN)
The static basic load rating C0 (see product details) denotes the value with which a rod end can in normal applications with a static load be stressed in the weakest cross-section without being permanently deformed. It represents the permissible radial bearing strain at rest. The basic load ratings quoted have been calculated using the respective material characteristic values and can be verified by tensile experiments at room temperature. The yield point was used to 80%, making the safety factor until yield start 1.25.
The static basic load rating also enables the permissible thrust load to be calculated:
Fa = Fa perm. = p • C0 (kN)
p = < / ~ 0.2 for rod ends K series maintenance-free version with sealing
Dynamic basic load ratings for rod ends are available on request.
