mbo Osswald supplies set collars, set collar, according to DIN 705 form B, with bore for taper pin or grooved pin. mbo Osswald offers these machine elements in material steel and stainless steel.

Set collars DIN 705 form B

414 reviews since 24.08.2026

More support surface, better force distribution: DIN 705 form B set collars offer an adapted ring geometry for larger bearing surfaces. This reduces surface pressure and is gentler on the shaft – useful when higher forces need to be safely absorbed or specific installation space requirements must be met.

Undercut steel (1.0715/1.0718) Stainless steel (1.4305) Stainless steel A2 (1.4301) Stainless steel A4 (1.4404)

Price per piece

Optional

Delivery time

still [[ stock ]] pieces in stock

Express delivery
Fast-track this part (max. 400 units) through our production facility. Shorten the delivery time by 1-2 working days. We are currently exclusively testing this delivery service for Germany.

Minimum quantity of [[minquantity]] pieces. From then on a minimum position value of [[minrevenue]] € applies.

Total price

Business customer

plus VAT
plus shipping costs

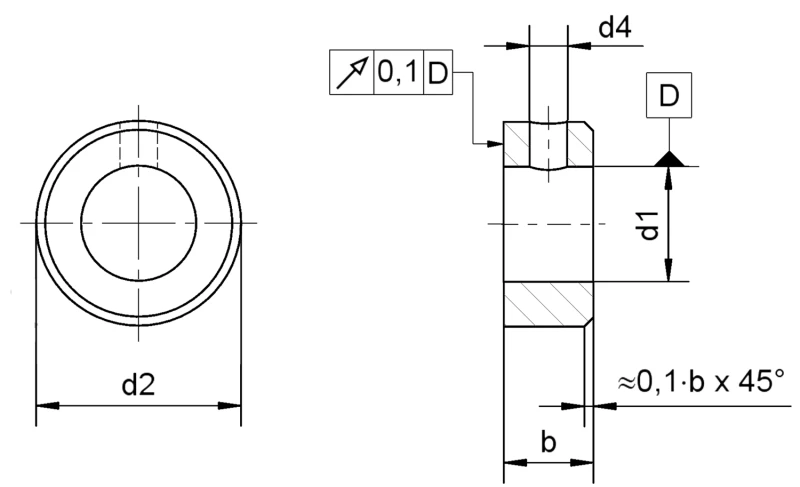

Set collars DIN 705 form B - Dimensional drawing

To find the article you want, you can select any number of filter criteria or search texts or combinations of the two at the top of the table.
To cancel your filter settings again, click on the "Clear" button below the table.
You can display product details, including the eShop function and 3D model , by clicking in the row corresponding to the required article.

1 The specified tolerances only apply to the "untreated" version. Other tolerances must be specified when ordering.
2 The Row 1 nominal diameters should preferably be used above all for new designs.
3 The nominal diameters of row 2 contain sizes that are currently still needed in practice, but should no longer be used in new structures.
* Unlike grooved and taper pins, setscrews (up to M 10 with slot to DIN EN 27434 and above M 12 with internal hexagon to DIN EN ISO 4027) are an integral part of the set collar (screwed).
** Instead of grooved pins to DIN EN ISO 8744, it is also possible to use dowel pins to DIN EN ISO 8752 or spiral dowel pins to DIN EN ISO 8750.
*** If taper pins to DIN EN 22339 are used, the hole must be reamed during assembly with a 1:50 taper.
